Power Transformer Protection Devices Explained

Why transformers need a whole set of devices to protect them

Power transformers are stationary devices with no rotating parts. They operate quietly and quietly, but that doesn’t mean they won’t fail. Internal short circuits in windings, insulation breakdown, hot spots caused by long-term overload, and electrodynamic forces caused by external short circuits-once these faults develop, the damage often becomes irreparable in a very short time. Protection is about reliably cutting the device out of the system before the damage expands.

In terms of objectives, transformer protection must not only quickly remove internal faults and limit equipment damage, but also provide alarms or backup actions for overload, overexcitation, external faults and cooling anomalies. With so many targets, it is impossible to carry them all with a single component, so in reality, a whole set of protective devices usually work together in front of the transformer.

Current protection: differential is the main force, overcurrent is a backup

The most core type of protection revolves around electric current. The longitudinal differential protection compares the current on each side of the transformer to detect phase faults or ground faults occurring within the protection zone. Its adjustment requires compensating for the errors in the ratio, the phase shift of the coupling group, and the current transformer, and is by no means a simple comparison of two readings.

The core of these current-type protections, such as differential protection and overcurrent protection, is power transformer protection relay, which is responsible for measuring and comparing the signals sent by the current transformers before deciding whether to issue a trip command. The sensitivity and selectivity of this execution center directly determine whether the fault can be accurately identified and whether it will cause erroneous actions.

Differential protection also has an inherent problem: the excitation surge during gate closing will appear in the form of differential flow. If you don’t want the normal closing to be misjudged as an internal fault, the differential device must rely on harmonic or waveform criteria to distinguish the surge from the real fault.

Overcurrent protection plays a more backup role, acting when differentials are not covered or when external short circuits require a safety net. When selecting rated values and curves, fuses and overcurrent protection must not only avoid normal loads and excitation surges, but also clear faults within the equipment’s tolerance range, and cooperate with upper and lower level protection.

Non-current protection: one for each tube for temperature, gas, and pressure

In addition to the current, a number of devices are also focused on several other weak points in the transformer. Thermal protection targets overload and hot spot risks. Liquid-immersed products are equipped with oil temperature protection, while dry products rely more on monitoring winding temperature and fan status. Overexcitation protection corresponds to operating conditions where the voltage-to-frequency ratio is too high, preventing the magnetic core from entering a dangerous overexcitation state.

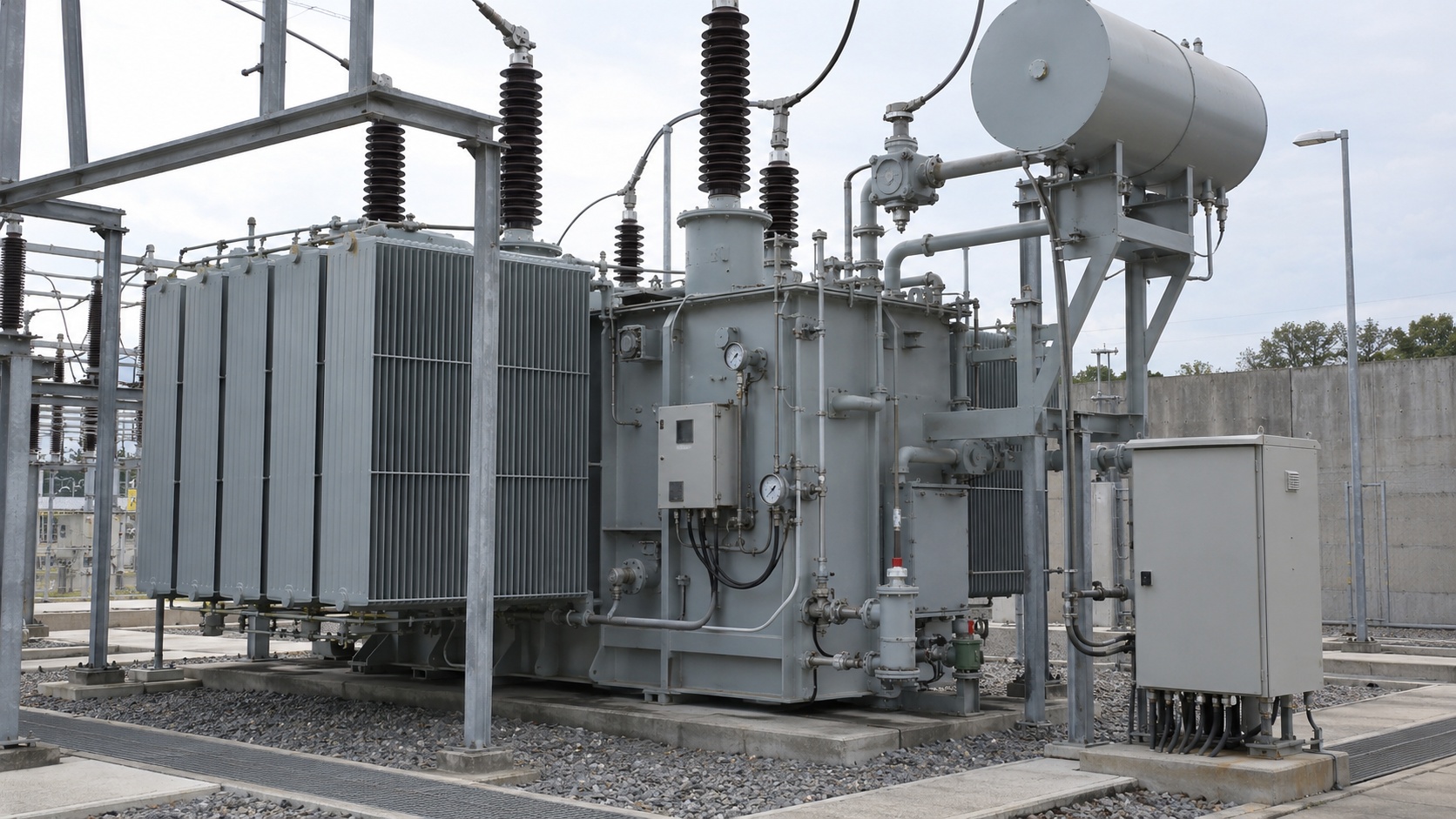

Liquid-immersed transformers are also additionally equipped with gas, burst pressure, and pressure relief devices specifically designed to capture gas and pressure changes caused by internal discharge or overheating; dry-type transformers, due to their different structures, typically do not involve these, instead focusing on winding temperature, fan condition, overcurrent, and differential.

Here is a principle that needs to be repeatedly emphasized: the specific devices to be installed and how they should be operated depend on the transformer’s capacity, structure, system grounding method, importance, number of windings and tapping method. The configuration of other projects cannot be copied, and there is no universal specification that can be applied based solely on capacity.

The device is installed, it is just the starting point of the protection chain

Just because the protective device itself is qualified does not mean that the entire protective chain is reliable. From measurement inputs, protection logic, trip loops, all the way to circuit breakers and warning and monitoring terminals, this link must be verified end-to-end. Testing the relay alone does not mean that the complete protection chain is without problems.

Before commissioning, the protection value, the polarity of the current transformer and the secondary wiring must be checked circuit by circuit. Before the first excitation, the impact of excitation surge on differential and overcurrent protection must be evaluated, and it must be confirmed that the circuit breaker, protection and system voltage conditions are all permissible before power can be supplied according to the controlled program.

Ultimately, transformer protection devices are a system engineering project that requires careful configuration according to the project and continuous proofreading from selection to commissioning. No matter how reliable the equipment is, it must rely on correct configuration, cooperation and verification to truly protect the transformer at critical moments.
