SCB14 Series • Epoxy Resin Cast
Power Transformer And Distribution Transformer
Model / Series: SCB14 Series
BBELC's three-phase cast resin dry-type distribution transformer is a series-level solution for indoor power distribution in commercial, industrial and public-infrastructure projects. The SCB14 Series covers project-defined voltage, capacity, insulation, connection, cooling and enclosure requirements, with typical ratings up to 35 kV and 100 kVA–20 MVA. Send the system data to confirm the final design and quotation.
- Rated VoltageUp To 35 kV
- Rated Power100 kVA–20 MVA
- Insulation ClassF/H
- Primary ApplicationIndoor Power Distribution
- Cooling ConfigurationProject-Defined By Load And Enclosure
- Project BasisVoltage, Capacity And Enclosure Matched To Project
Series-level values are shown where the supplied reference page gives a range; confirm project-specific ratings and interfaces in the approved data sheet.
ORDER INPUTS
Confirm These Inputs Before You Order
For a series-level power transformer request, the fastest path to a comparable quotation is to send the system inputs that determine voltage matching, insulation coordination, cooling, enclosure and installation fit.
Rated Power And Load Profile
Send continuous capacity, overload duty, motor-starting or rectifier/nonlinear-load details; final rating follows the approved load study.
HV/LV Voltage And Frequency
Confirm primary/secondary voltage, frequency and required tap range before the winding design is released.
Vector Group And Impedance
State the required connection group, impedance and short-circuit duty so protection and parallel operation can be checked.
Cooling And Enclosure
Identify natural/forced-air requirements, access, ventilation and enclosure needs.
Site And Environment
Provide altitude, ambient temperature, humidity, dust/salt/chemical exposure and available installation space.
Documents And Approval
Request outline drawings, nameplate data, routine test requirements and the approved document list in the quotation package.
FACTORY ACCEPTANCE
Build The Factory Acceptance Package Into The Quote
The quotation should tie each routine-test result to the supplied transformer, project standard and final delivery documents.
Routine Electrical Tests
Confirm insulation resistance, voltage ratio and vector group, winding resistance, no-load and load loss, applied/induced withstand and partial discharge where required by the project.
Design And Nameplate Data
Review rated power, voltage, connection group, impedance, cooling class, dimensions and weight against the approved drawing and data sheet.
Acceptance And Traceability
Request the final routine test report, inspection release, serial/nameplate record and packing list for the delivered unit.
Witness Or Third-Party Testing
The supplied reference page states witnessed factory testing and third-party re-testing are supported; confirm scope, standard and witness points in the order.
PRODUCT PHOTOS
See The Supplied Product From Every Useful Angle.

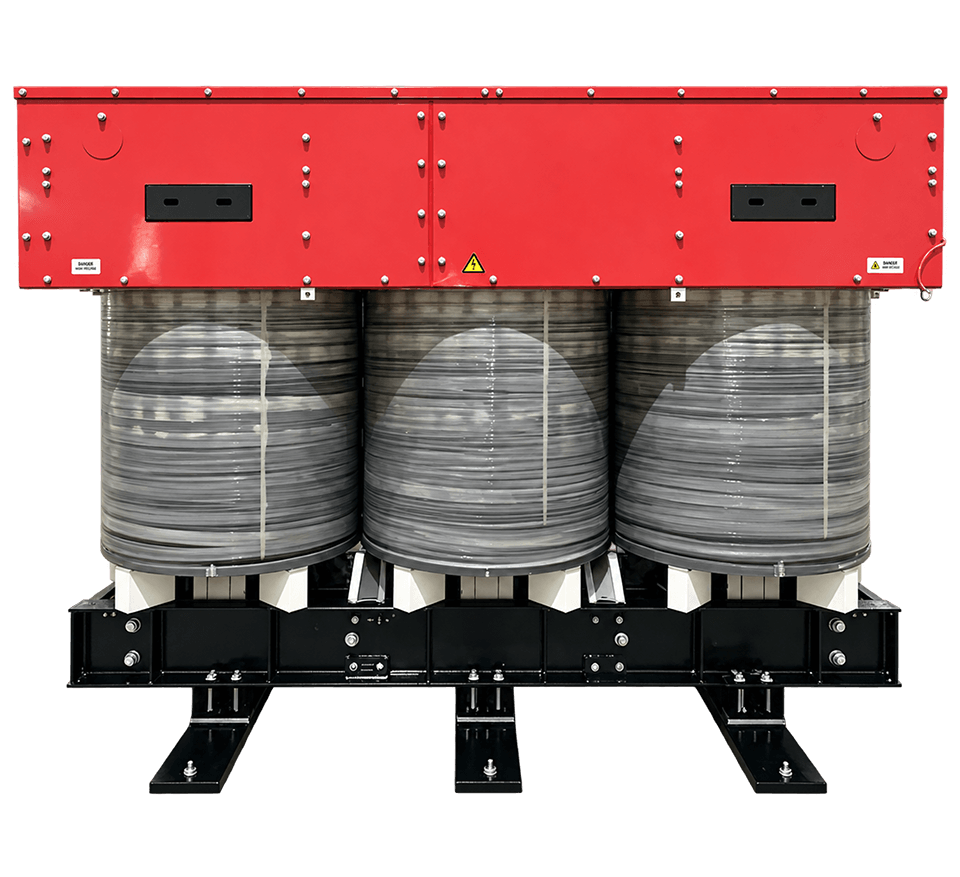

The supplied image set shows the transformer body and detail views for series-level review.
COMPLETE SPECIFICATIONS
The Exact Data Buyers Need Before Ordering.
Series-level values are shown where supplied; confirm the selected capacity, voltage, impedance, dimensions and interface in the approved project data sheet.
| Product Name | Three-Phase Cast Resin Dry-Type Distribution Transformer |
|---|---|
| Model / Series | SCB14 Series |
| Product Category | Cast Resin Dry-Type Power/Distribution Transformer |
| Rated Voltage | Up To 35 kV |
| Rated Power | 100 kVA–20 MVA |
| Insulation System | F/H |
| Connection / Vector Group | Yyn0 Or Dyn11, Project-Defined |
| Applicable Standard | IEC 60076-11; IEC/IEEE Project Basis |
APPLICATIONS & EQUIPMENT
Where This Model Is Normally Used.
Use the series when an indoor dry-type distribution solution is specified and the electrical, environmental and installation inputs are confirmed.
Commercial And Office Buildings
For indoor distribution rooms where voltage, capacity, ventilation, clearances and local building requirements are confirmed in the project design.
Industrial Plants
Match the transformer to plant load profile, motor starts, drives, impedance, short-circuit duty and protection coordination.
Hospitals And Public Infrastructure
Use when a dry-type indoor solution is specified; confirm fire, noise, ventilation, access and maintenance requirements for the site.
DIMENSIONS & TECHNICAL DRAWING
Confirm Fit Before You Place The Order.
Use the supplied drawing set to confirm overall layout and connection clearances. Dimensions, weight and interface details vary by capacity and voltage, so final outline approval must use the project data sheet.

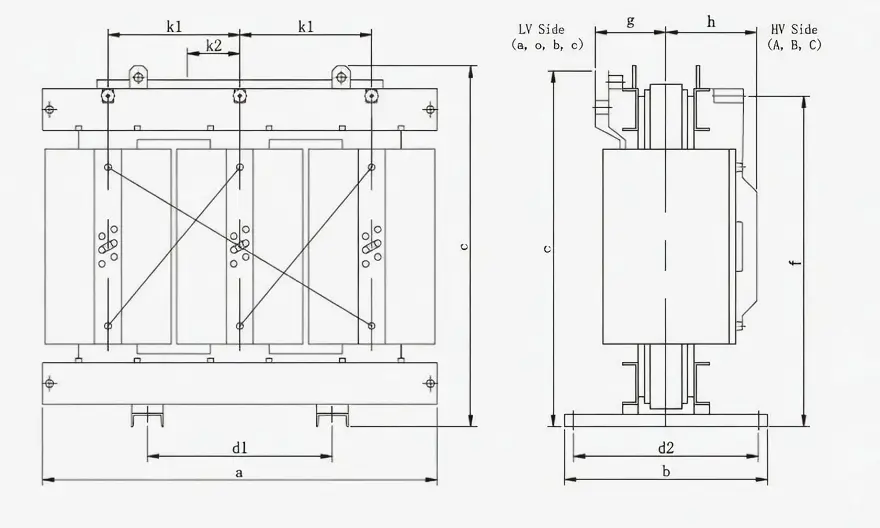

SCB14 Series Outline And Installation Drawings
Two customer-supplied drawing images were provided for fit review. Confirm the applicable revision, mounting interface, cable clearances and final equipment weight before release.
- Capacity- And Voltage-Dependent Outline
- Connection And Mounting Details
- Clearance And Enclosure Review
- Applicable Drawing Revision And Issue Date
MATERIALS & MANUFACTURING
How The Supplied Version Is Made And Finished.
The supplied version uses cast-resin insulation; process, enclosure and finishing details are confirmed against the project design and factory documents.
Epoxy Resin Cast Insulation
The SCB14 Series reference page identifies epoxy resin cast insulation for dry-type indoor distribution.
Design, Casting And Testing Workflow
Shanghai Beibian's process covers contract review, design, material inspection, winding and insulation work, assembly, routine testing, OQC and packing.
Project-Defined Enclosure And Finish
Confirm enclosure protection, installation environment, cooling arrangement and finish requirements in the approved technical specification.
PERFORMANCE & WORKING CONDITIONS
Define The Operating Window Clearly.
Series-level ratings are shown only where the supplied reference page provides a range; final performance values depend on the selected capacity, voltage, cooling and project conditions.
CUSTOMIZATION
Adjust The Specification When The Standard Version Is Not Enough.
Shanghai Beibian can configure transformer designs around the project electrical system, installation conditions and documentation requirements.
- Voltage And Capacity
Match rated power and primary/secondary voltage to the load study and system single-line diagram. - Winding And Vector Group
Specify winding quantity, connection group and phase-shift requirements where the system requires them. - Impedance And Insulation
Confirm impedance, insulation level and dielectric coordination against the network and protection study.
- Cooling And Enclosure
Select natural or forced-air arrangements, enclosure protection and site environmental treatment by project condition. - Installation Dimensions
Review outline dimensions, cable access, lifting, service clearances and equipment-room constraints before design release. - Documents And Approval
Define drawings, test reports, nameplate data and other approval documents required for procurement and commissioning.
PRE-SALES & AFTER-SALES SERVICE
Support From Specification Review To Repeat Supply.
Support follows the project from technical inputs through manufacturing, testing, delivery and follow-up.
Before Ordering
Review rated power, voltage, winding arrangement, impedance, insulation, cooling, enclosure and installation conditions with the engineering team.
During Production
Orders pass through contract review, design, manufacturing, routine testing, OQC, packing and delivery documentation.
After Delivery
Installation, commissioning, operating documentation and maintenance support can be coordinated for the supplied project.
FACTORY & MANUFACTURER
Know Who Makes And Supports This Model.
Shanghai Beibian Technology Co., Ltd. develops and manufactures special transformers and power-conversion products with production and project support across Shanghai Songjiang, Zhejiang Wenzhou and Shandong Jinan.
Shanghai Beibian Technology Co., Ltd.
Shanghai Beibian develops, designs and manufactures special transformers and power-conversion products. Its project workflow connects engineering, procurement, manufacturing, quality and delivery records; the supplied series can be configured around voltage, capacity, cooling, enclosure and installation conditions.
- Special Transformer And Power-Conversion Manufacturing
- PLM, ERP, MES And QMS-Connected Project Records
- Standard And Project-Based Custom Design
- Shanghai, Wenzhou And Jinan Manufacturing Locations
CERTIFICATES & STANDARDS
Customer-Provided Certification References
The following certification and compliance references were supplied for this product range. Request the current scope, validity and applicable product documents during approval.
- ISO Management System CertificationCustomer-Provided Reference
- CE Compliance ReferenceCustomer-Provided Reference
- ETL And UL Safety ReferencesCustomer-Provided References
- RoHS And REACH Compliance ReferencesScope And Validity To Be Confirmed
