PHASE-SHIFTING RECTIFIER TRANSFORMER FOR HEAVY-DUTY EV CHARGING

BBELC’s Phase-Shifting Rectifier Transformer is designed for heavy-duty EV charging systems, providing high-power, low-harmonic and reliable power conversion solutions for electric trucks, industrial vehicles, and fast-charging infrastructure.

Get a Quote Get a Quote Connect Us

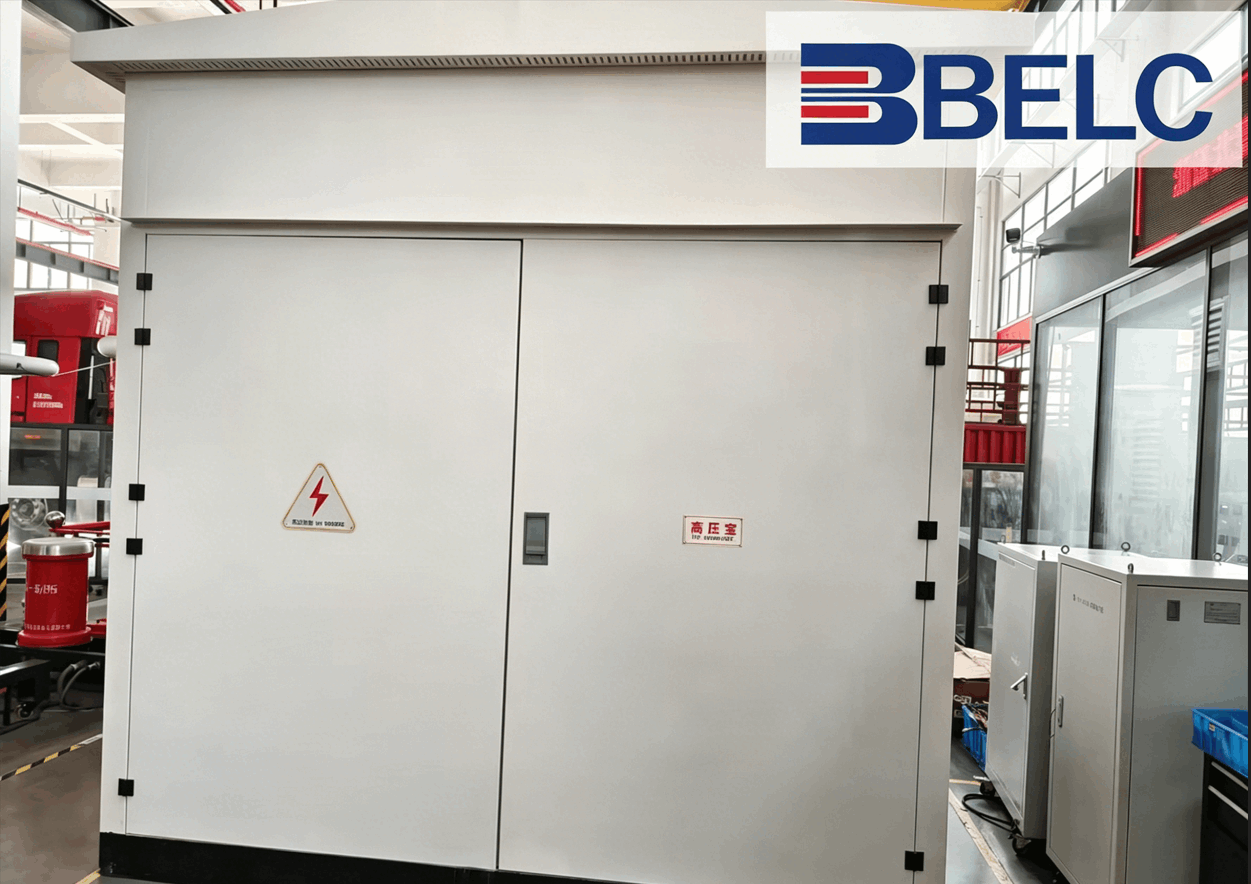

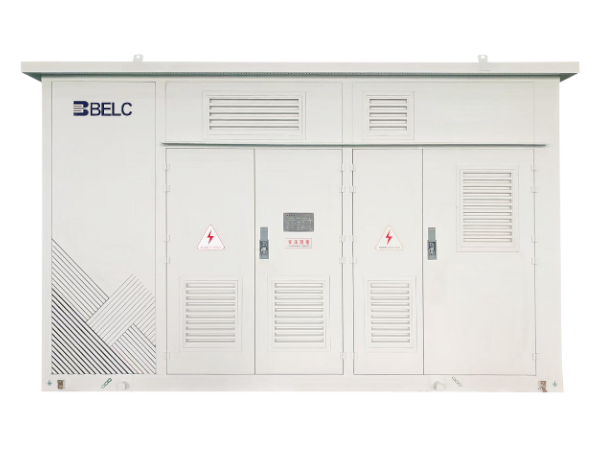

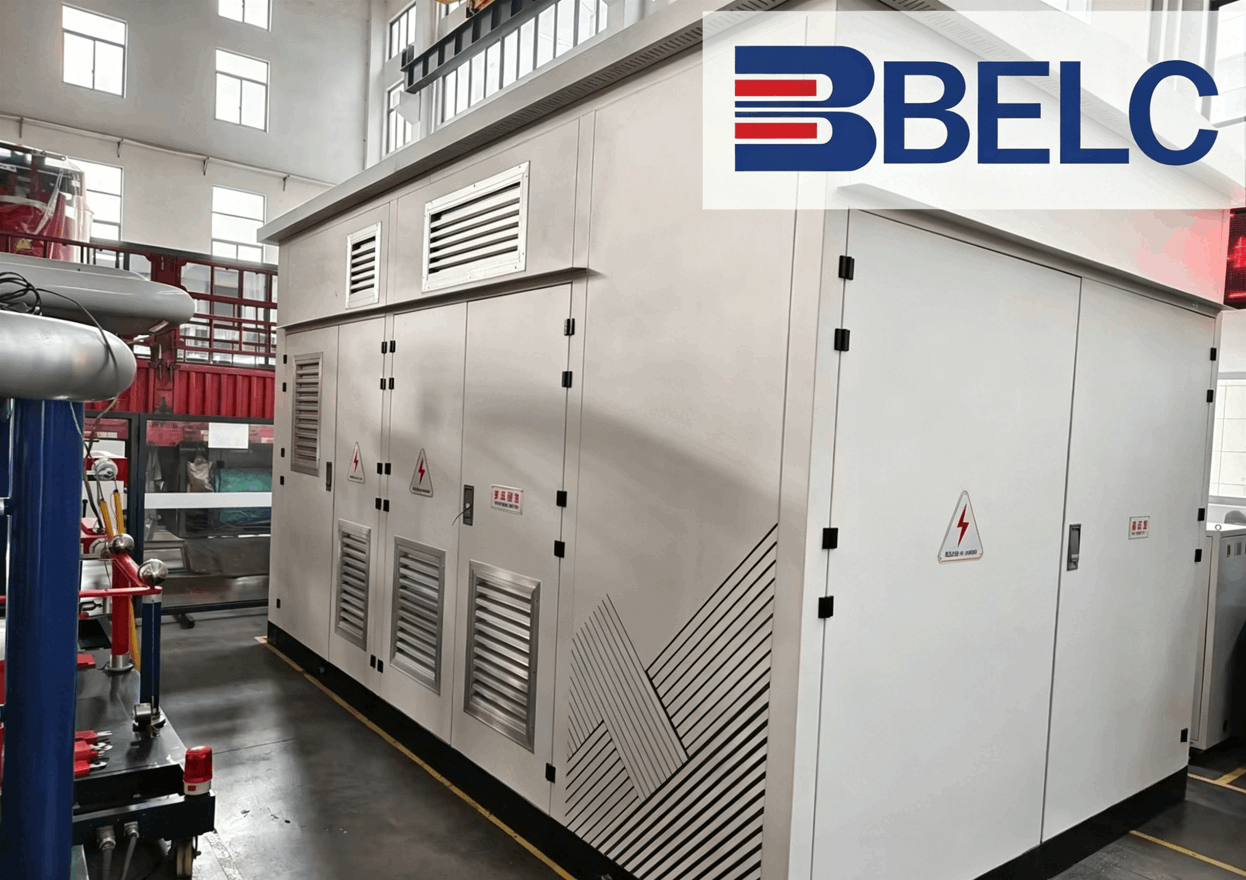

Integrated EV charging substation with phase-shifting rectifier transformer

Product Introduction

Phase-Shifting Rectifier Transformer for Heavy-Duty EV Charging

BBELC’s Phase-Shifting Rectifier Transformer for Heavy-Duty EV Charging is a specialized dry type transformer designed for high-power charging infrastructure and industrial electric vehicle applications. Through multi-winding phase-shifting technology, it provides stable power conversion, reduces harmonic distortion, and improves power quality for fast charging systems.

Rated Voltage: up to 10KV
Rated Power: up to 2500kVA
Insulation Class: F/H
Standard: IEC/IEEE

Connect Us Get a Quote

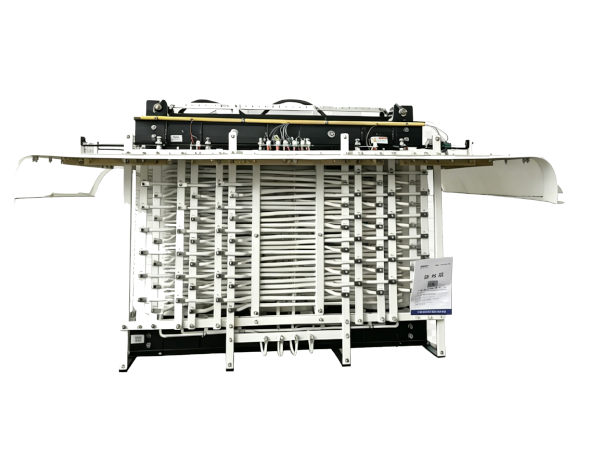

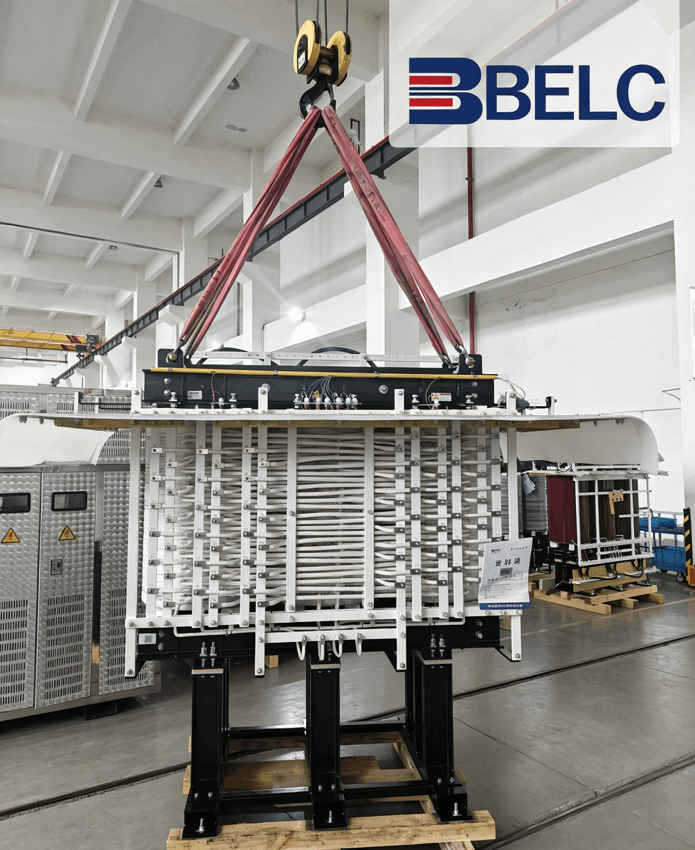

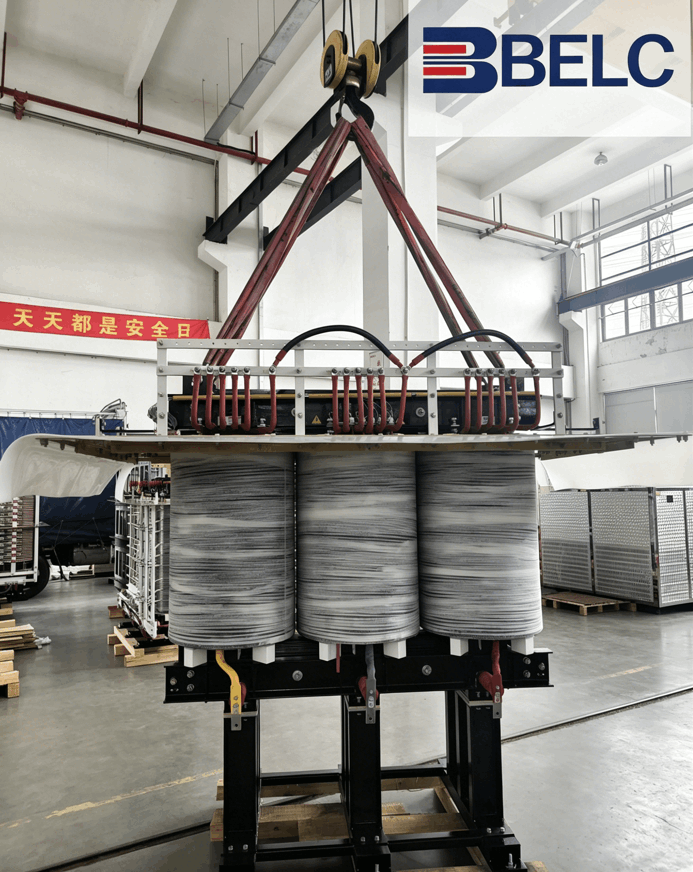

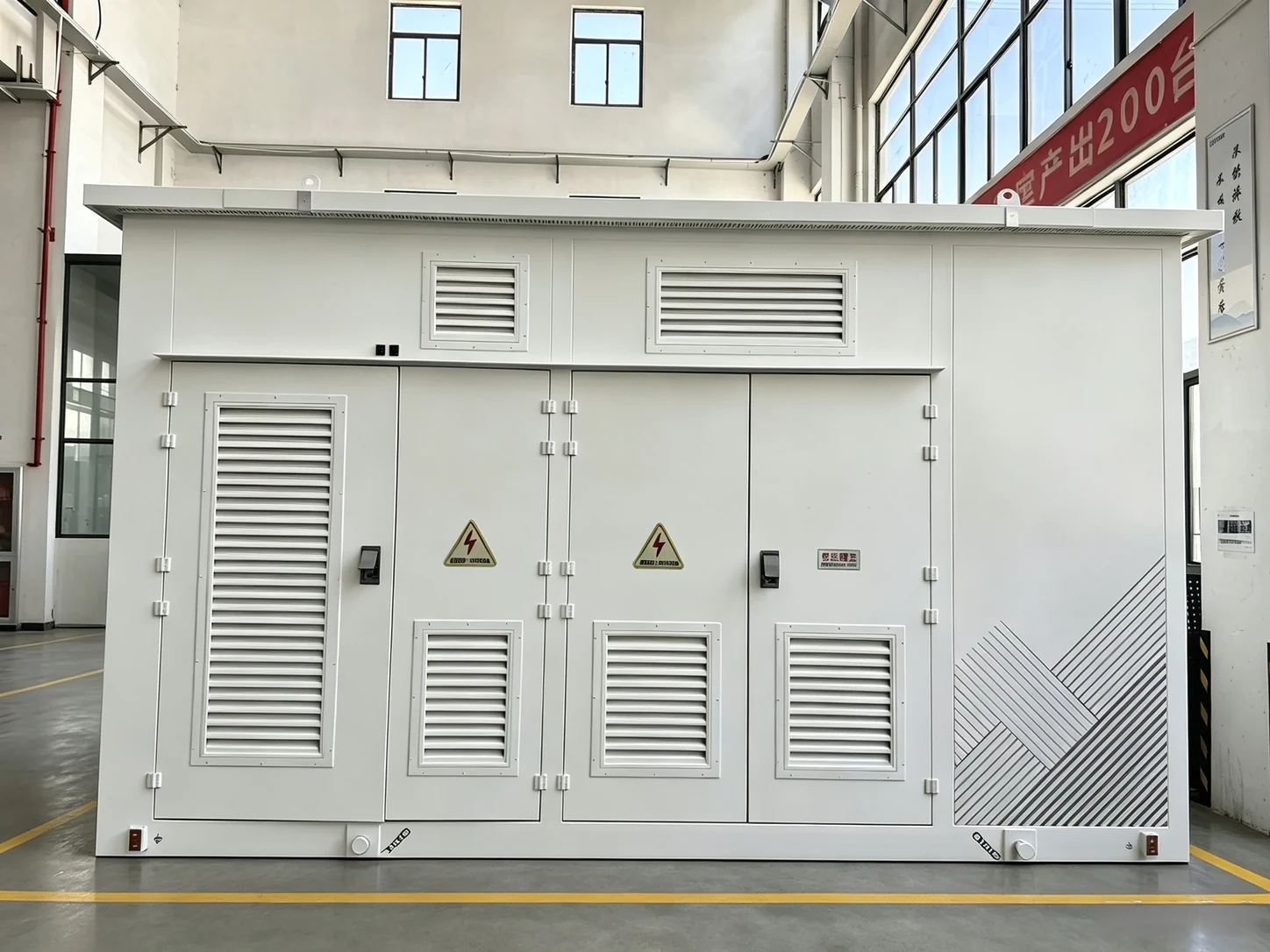

Phase-shifting rectifier transformer product image 1

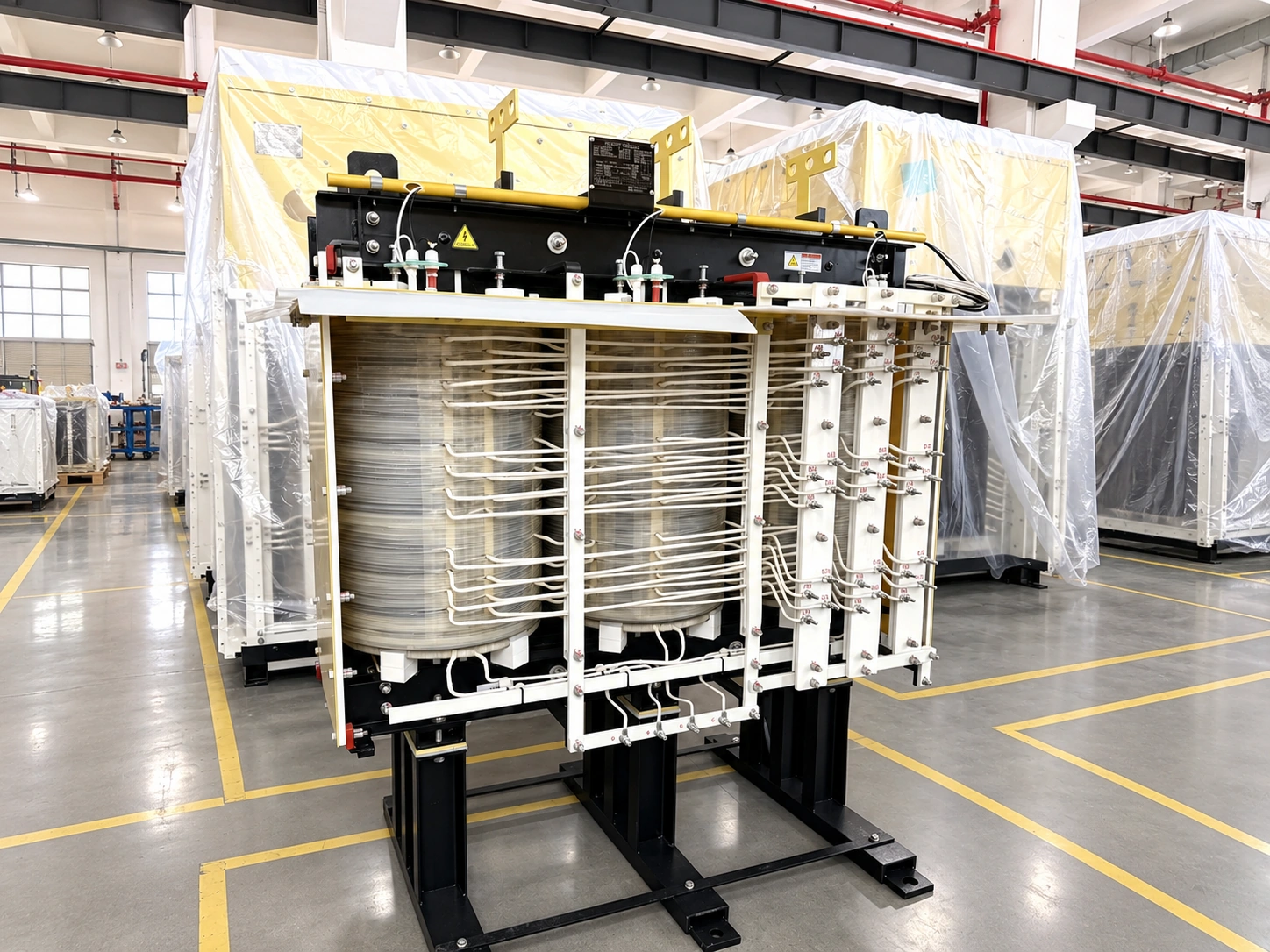

Phase-shifting rectifier transformer product image 2

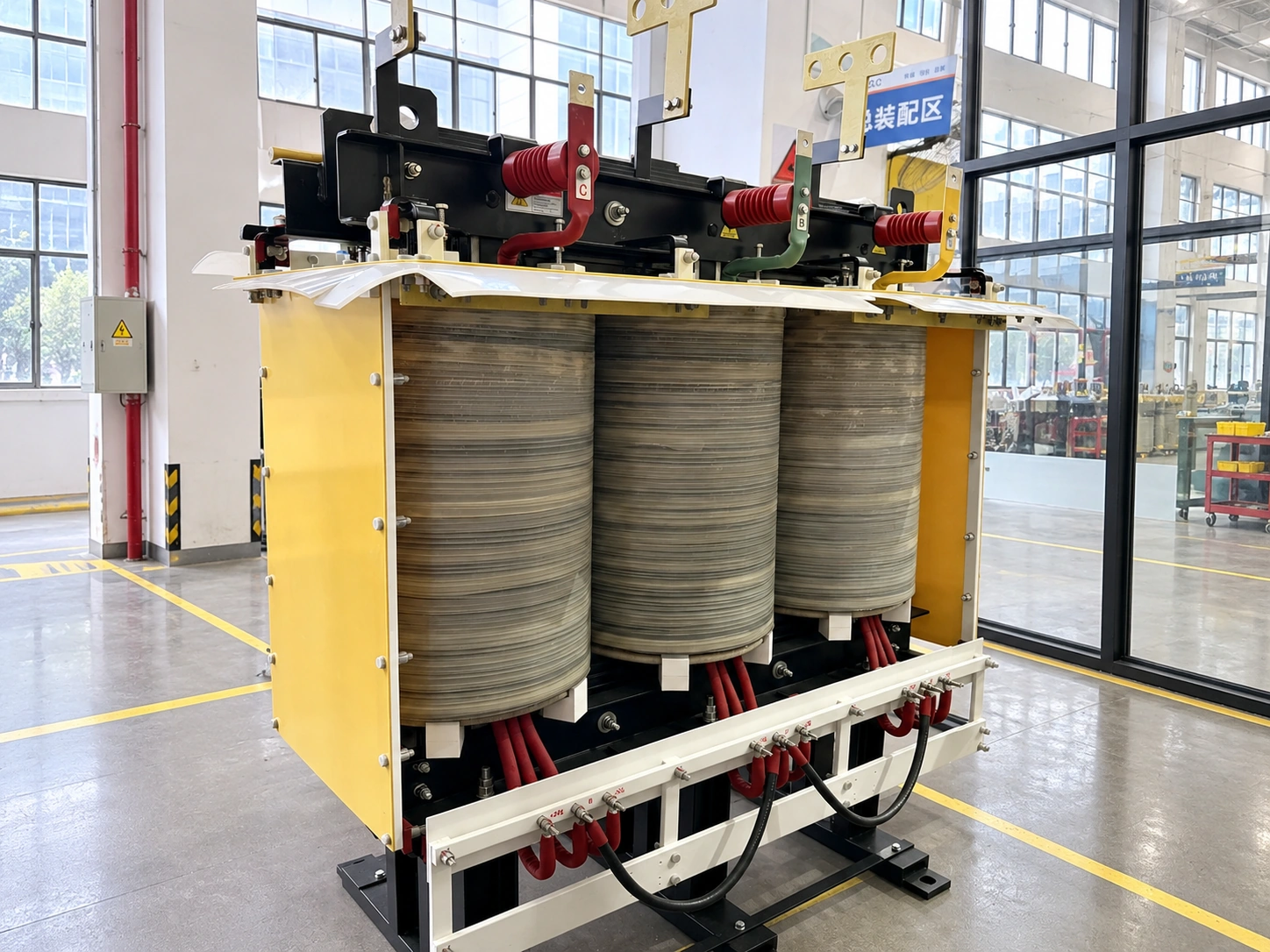

Phase-shifting rectifier transformer product image 3

Applications

Heavy-Duty Truck Fast Charging

Megawatt Charging Stations

Battery Swap Systems

Electric Truck Depots

Fleet Charging Hubs

High-Power EV Infrastructure

Product Features

High-power, low-harmonic and reliable power conversion for heavy-duty EV charging systems and industrial electric vehicle applications.

MW-Class Charging Capacity

Designed for high-power EV charging and battery swap stations, supporting 2.4MW–3.0MW charging systems with direct connection to 10kV/35kV medium voltage grids.

1200A Ultra-Fast Charging

Supports 720V DC bus systems and up to 1200A charging current, enabling ultra-fast charging for heavy-duty electric trucks and commercial vehicles.

Phase-Shifting Transformer Technology

Integrates phase-shifting transformer technology with 12-pulse or 24-pulse rectification to provide stable DC power output and improve charging system performance.

Low Harmonic Power Quality

Advanced phase-shifting design reduces grid harmonic distortion, achieving THDi ≤5% and power factor ≥0.95, minimizing the need for additional harmonic compensation.

10kV/35kV Medium Voltage Connection

Directly connects to 10kV/35kV power grids, replacing traditional step-down transformer plus low-voltage rectifier structures to reduce system complexity and losses.

Customized Charging Solution

Supports flexible configurations for charging capacity, voltage levels, DC bus systems, and battery swap applications to meet different heavy-duty EV requirements.

Routine Testing

Every transformer completes the full routine test sequence in accordance with GB/T 1094.11 and IEC 60076-11 before shipment, and a test report is provided with each delivery.

01 — Insulation resistance test
02 — Voltage ratio & vector group
03 — Load loss test
04 — Partial discharge level
05 — Withstand voltage test
06 — Winding resistance test
07 — Induction withstand voltage test
08 — No-load loss test

Complete routine test reports are shipped with every unit. Witnessed testing at the factory and re-testing by third-party laboratories are supported.

Certificates& Compliance

Internationally certified & compliant ISO certified | CE, UL & ETL certified | RoHS & REACH compliant. Meeting international standards for quality, safety and environmental compliance.

CE Certificate

ETL Certificate

UL Certificate

ISO9001 Certificate

Lifecycle Service Support

From solution design to installation, operation, and maintenance, our technical and service teams provide full support throughout the product lifecycle.
