How To Select Power Transformer Parts Suppliers

What components make up a power transformer

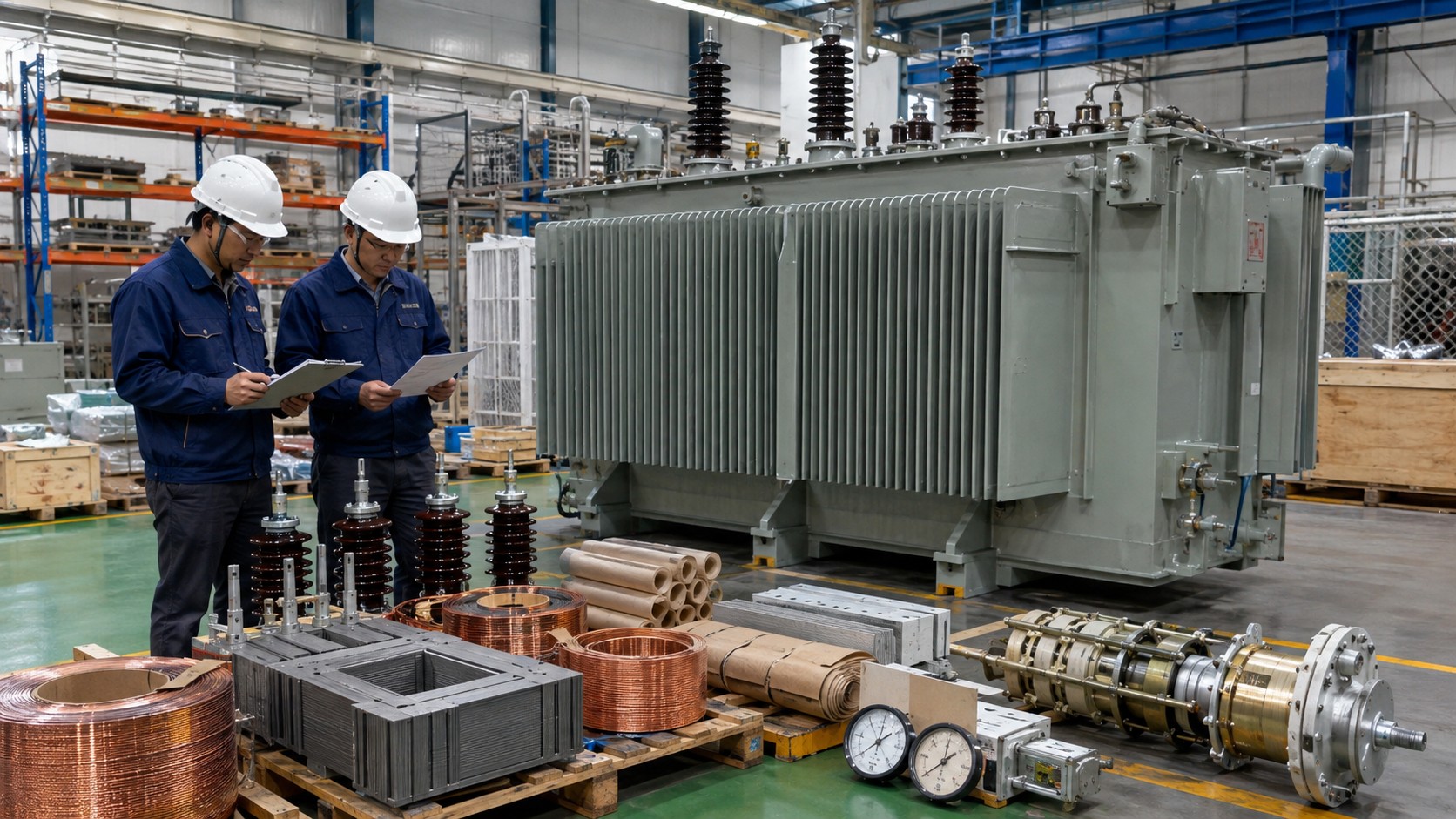

A power transformer is far from a black box cast in one piece. Structurally, it consists of a magnetic core, primary and secondary windings, a main insulation system, leads and terminals or sleeves, tap windings and tap switches, a cooling device, a housing or oil tank, as well as temperature measuring elements and protective monitoring accessories. After understanding this layer of composition and looking at the component supply, it is easy to grasp the key point: these components do not all come from the same factory. When purchasing, only look at the whole machine, and it is easy to miss the supply link behind it.

From the perspective of manufacturing process, the production of a dry rectifier transformer will go from contract review to product design, material procurement, incoming material inspection, component manufacturing, final assembly, finished product testing and factory inspection. The raw and auxiliary materials purchased or agreed upon by foreign partners usually include bare electromagnetic wires, insulating paper, insulating paint, insulating materials, silicon steel sheets and clips, and these materials must be inspected before being put into storage. In other words, the level of the component supplier will be passed on to whether the transformer can eventually operate stably.

Where the cost of components and materials is concentrated

From a cost perspective, copper or aluminum conductors, electrical steel, insulation materials, resins, insulating fluids, sleeves, tap changers, and cooling equipment are the main sources of transformer material and component costs. Each of these materials has its own specific requirements: cold-rolled oriented electrical steel is commonly used in the magnetic core. The grade, sheet thickness, magnetic flux density and joint structure of the material will directly affect no-load loss and noise; the insulating material needs to be compatible with the highest electric field, temperature level, cooling medium, partial discharge, mechanical load and expected environment. Therefore, when choosing a component supplier, it is meaningless to look at the price alone, but also to see what role these materials play in the overall performance of the machine.

Suppliers are not the same as manufacturers

An easy pit to step into is treating suppliers and manufacturers as the same thing. Manufacturers are the entities responsible for product design or manufacturing, while suppliers may be manufacturers, authorized channels, system integrators, or even traders. When making purchases, the legal entity and chain of responsibility must be confirmed. The factory name or place of origin can only indicate the manufacturing location and cannot independently prove design rights, quality system, type capability, certification scope or after-sales responsibility. Similarly, the fact that a channel is selling a certain type of component only means that there is a commercial quote or inventory clue, and does not mean that the voltage, frequency, insulation, standards and environmental conditions of these components are suitable for the specific project you have. Clarifying the other party’s position in the chain is a prerequisite for evaluating suppliers.

What criteria to use for evaluation

When evaluating component suppliers, they should use verifiable performance, testing capabilities, quality systems, production capacity, and terms of service to speak. Online evaluations can only be used as clues, not as conclusions regarding the procurement of key equipment. If alternative materials or suppliers are involved, compatibility and risk reviews must be conducted, and replacements should not be made simply because specifications appear similar. The procurement details should correspond key raw materials and accessories to the approved technical conditions, and any alternative actions should be recorded in a traceable record.

What to do when the supply chain is tight

When the supply chain is tight, risks can be mitigated by freezing specifications, standardizing interfaces, procuring frameworks, spare parts for key accessories, or implementing engineering-proven multi-source strategies in advance. However, all of this is predicated on not arbitrarily relaxing technical and testing requirements. Stable supply is important, but we cannot trade the bottom line of technology for it.

Put the supplier back in the whole device to see

Choosing the right component supplier essentially involves tightening the transformer’s material, insulation, thermal, mechanical, and manufacturing quality chain link by link. Only when every key component and raw material has a reliable source and can withstand inspection and traceability can the final delivered transformer gain a foothold in long-term operation.
