Dry-Type Transformer for Renewable Energy Systems
BBELC’s Dry Type Transformer for Renewable Energy Systems is designed for clean energy applications, providing safe, reliable, and customized power conversion solutions for wind, solar, energy storage, and hydrogen energy projects.
Product Introduction

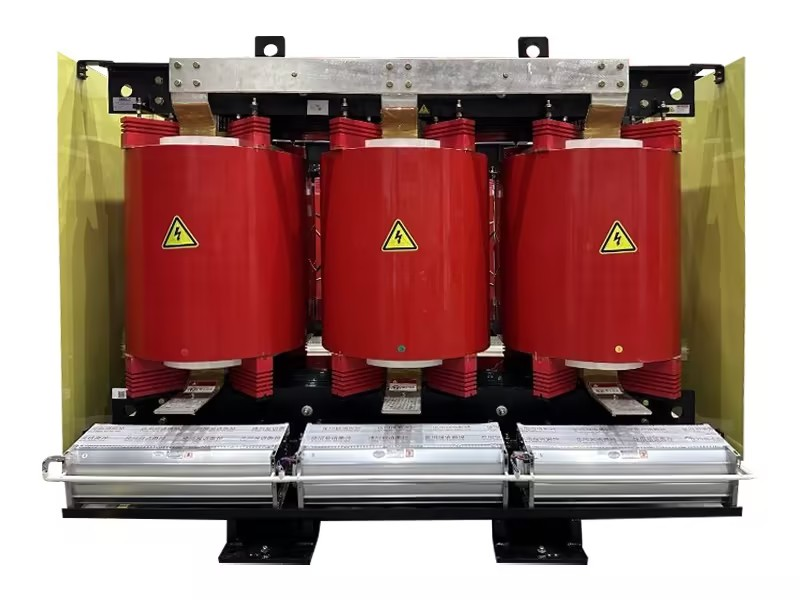

Dry-Type Transformer for Renewable Energy Systems
BBELC’s Dry Type Transformer for Renewable Energy Systems is specially designed for modern clean energy projects, including wind power, solar PV, energy storage, and hydrogen energy applications. With excellent safety, environmental performance, and reliable operation, it meets the demanding requirements of renewable energy installations in harsh environments such as deserts, plateaus, and offshore areas.
- Rated Voltage: up to 35KV
- Rated Power: up to 12MVA
- Insulation Class: F/H
- Standard: IEC/IEEE
Applications
Wind Power Generation Systems
Solar PV Power Plants
Battery Energy Storage Systems (BESS)
Hydrogen Energy Projects
Offshore Renewable Energy Projects
Renewable Energy Grid Connection Systems
Product Features
Stable, reliable and high-performance power supply for renewable energy testing and advanced electrical systems.

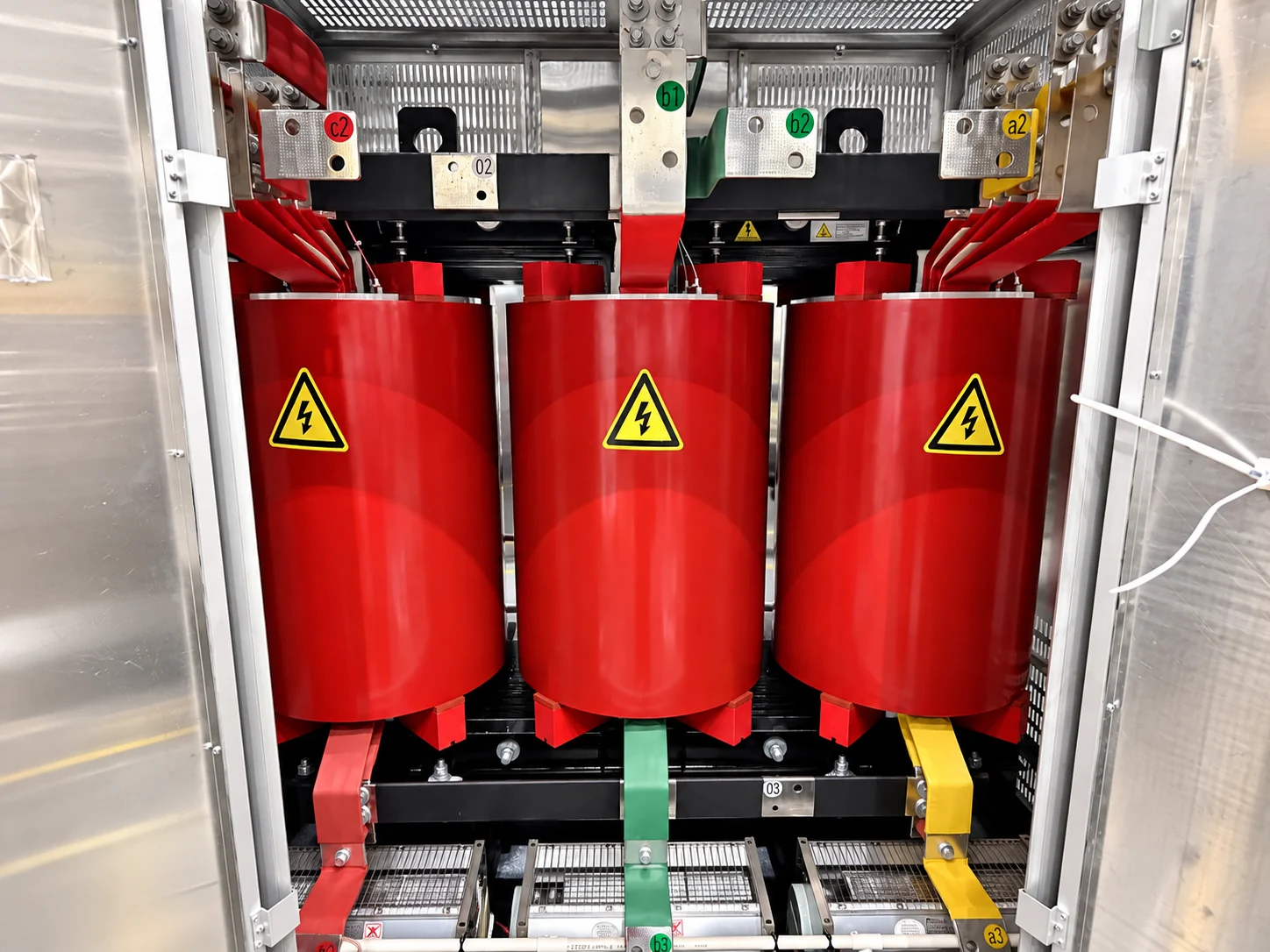

Cast Resin Insulation Design
Segmented windings with high thermal conductivity and flame-retardant epoxy resin provide strong insulation and mechanical strength.
Harsh Environment Protection
Resistant to moisture, dust, salt spray, and chemical corrosion in demanding renewable energy environments.
Oil-Free & Eco-Friendly Design
Oil-free construction eliminates leakage and fire hazards for safer, more sustainable operation.
High Short-Circuit Strength
Cast resin windings withstand strong electromagnetic forces during short-circuit conditions.
High Heat Resistance Performance
Class F or Class H insulation provides heat resistance and enhanced overload capability.

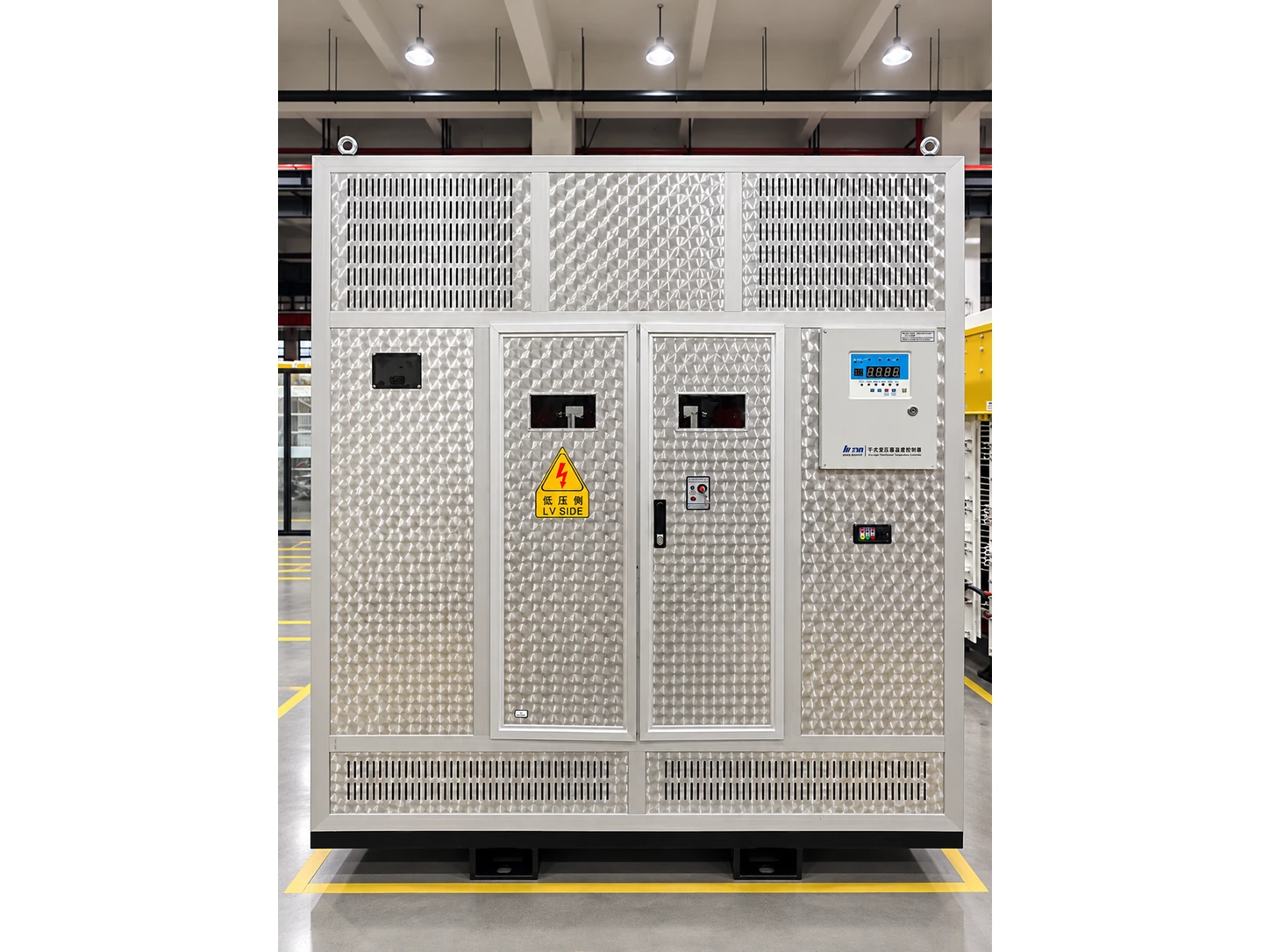

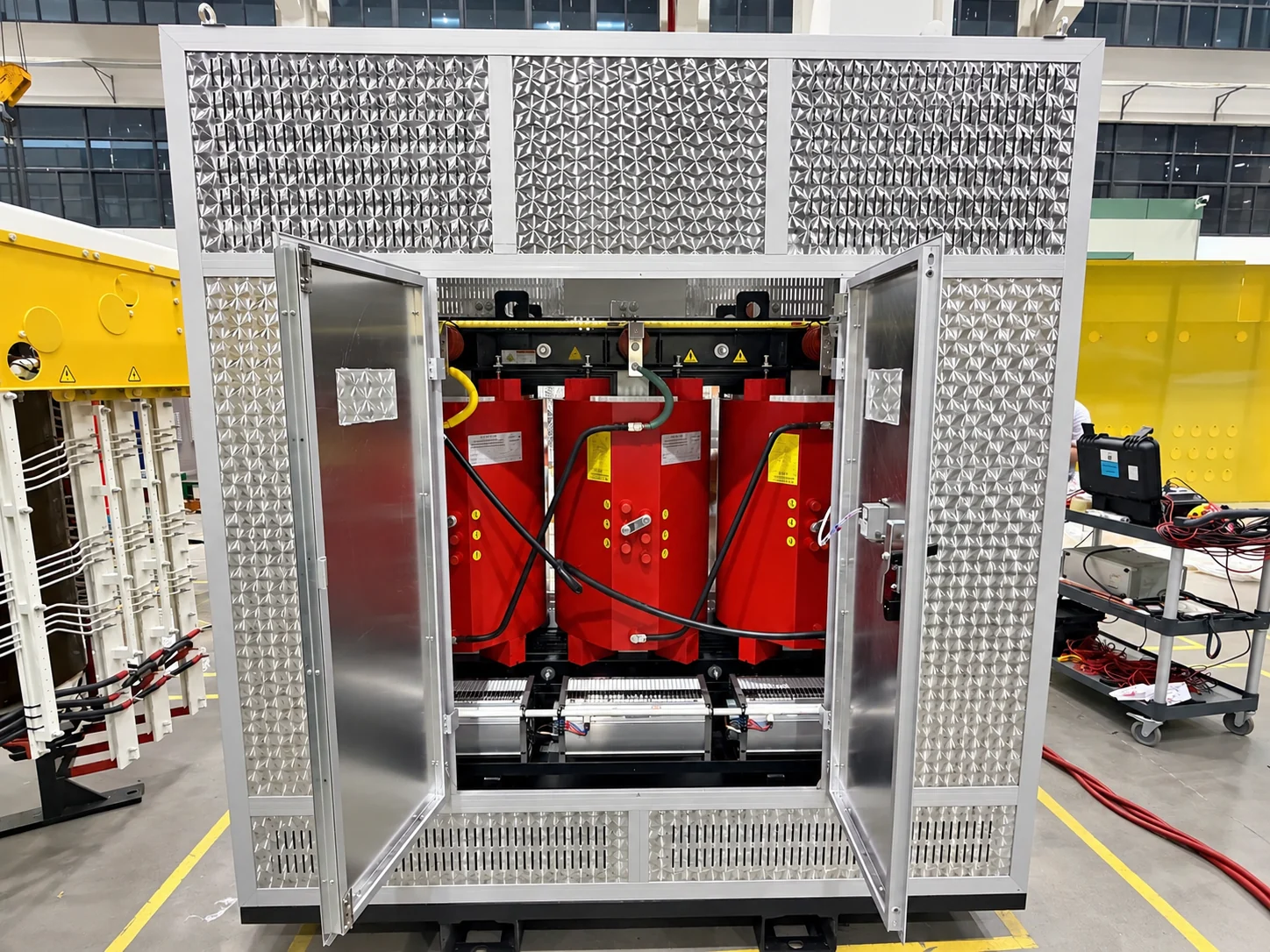

Compact Containerized Design
Optimized structure enables integration into containerized and space-limited renewable energy systems.
Routine Testing
Every transformer completes the full routine test sequence in accordance with GB/T 1094.11 and IEC 60076-11 before shipment, and a test report is provided with each delivery.
- 01 — Insulation resistance test
- 02 — Voltage ratio & vector group
- 03 — Load loss test
- 04 — Partial discharge level
- 05 — Withstand voltage test
- 06 — Winding resistance test
- 07 — Induction withstand voltage test
- 08 — No-load loss test
Complete routine test reports are shipped with every unit. Witnessed testing at the factory and re-testing by third-party laboratories are supported.
Certificates& Compliance
Internationally certified & compliant ISO certified | CE, UL & ETL certified | RoHS & REACH compliant. Meeting international standards for quality, safety and environmental compliance.
CE Certificate
ETL Certificate
UL Certificate
ISO9001 Certificate
Lifecycle Service Support
From solution design to installation, operation, and maintenance, our technical and service teams provide full support throughout the product lifecycle.
- Customized dry type transformer solutions
- Technical consultation and product selection
- Electrical drawing and design optimization
- Fast quotation and engineering support
- OEM & project-based customization
- Installation guidance and commissioning support
- Technical documentation and operating manuals
- Online troubleshooting and technical assistance
- Spare parts and maintenance support
- Responsive after-sales service worldwide

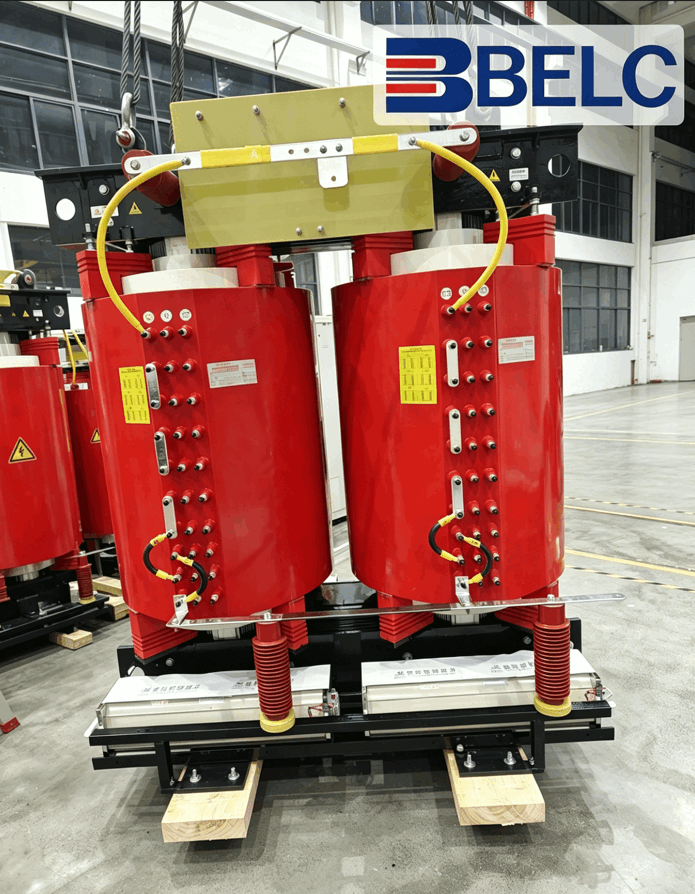

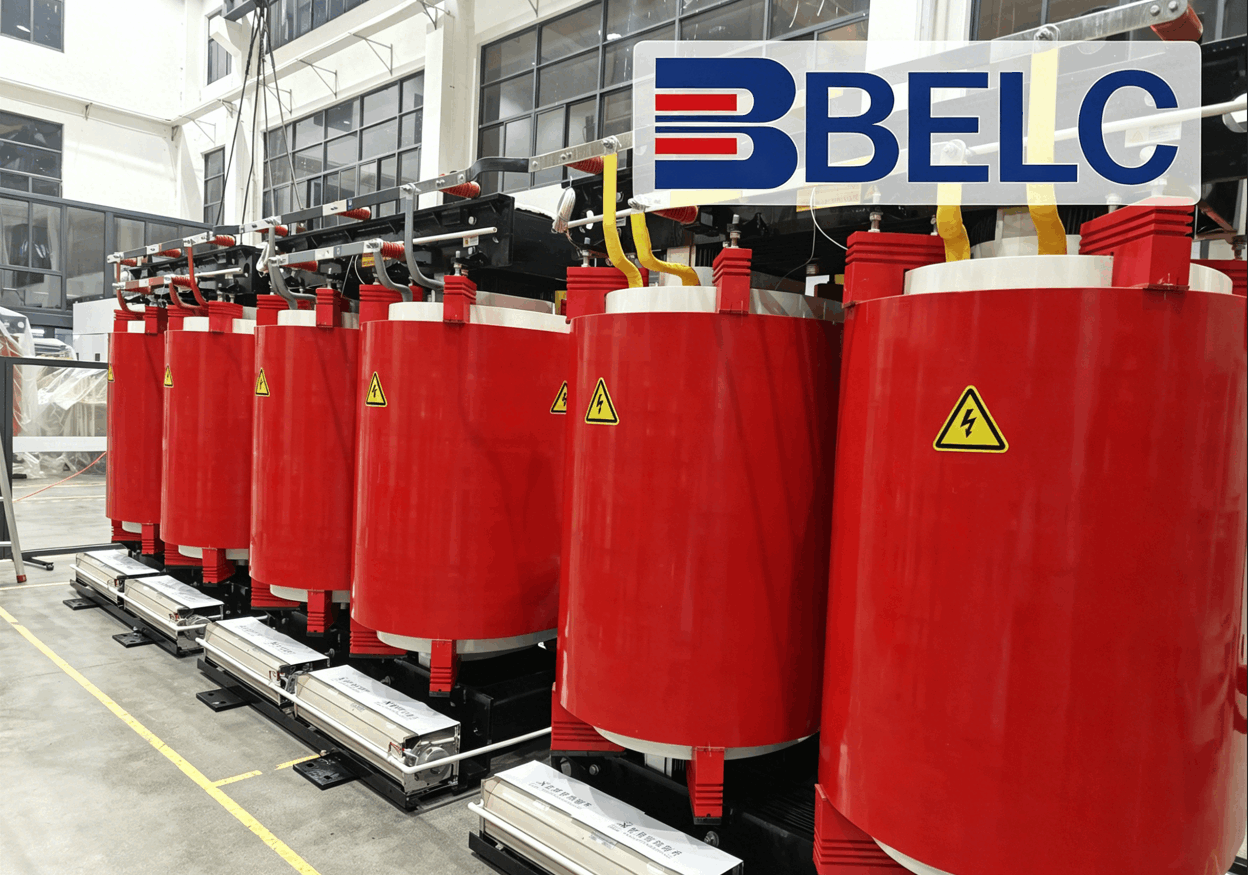

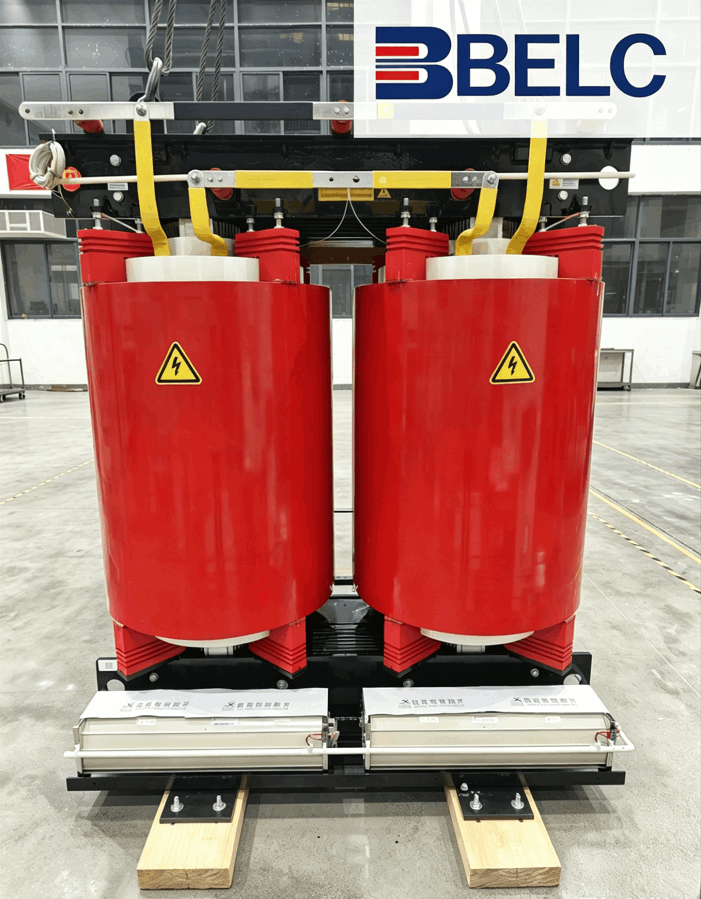

Workshop Gallery
Every transformer that leaves our factory comes from a standardized smart manufacturing line.
Need a Customized Dry-Type Transformer Solution?
Submit your technical requirements — our senior engineering team will provide a selection plan and an accurate quotation within 72 hours.
