Dry-Type Transformer for Marine & Offshore Applications
BBELC’s Dry Type Transformer for Marine & Offshore Applications is designed for shipboard and offshore electrical systems, delivering safe, reliable, and environmentally friendly power solutions in demanding marine environments.
Product Introduction

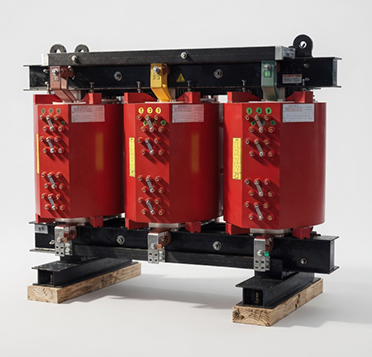

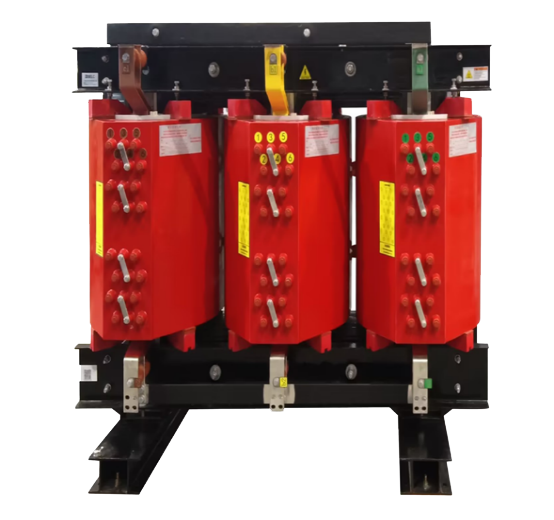

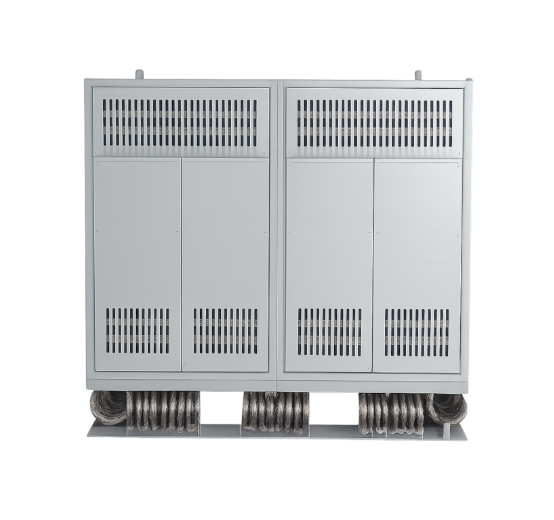

Dry-Type Transformer for Marine & Offshore Applications
BBELC’s Dry Type Transformer for Marine & Offshore Applications is specially designed for shipboard electrical systems and offshore platforms, providing reliable power conversion for marine power distribution, lighting systems, propulsion systems, navigation equipment, and communication systems. With excellent resistance to moisture, salt spray, vibration, shock, and corrosion, it is built to operate reliably under harsh marine conditions. The oil-free dry type design provides enhanced safety, environmental protection, and long service life for modern marine applications.
- Rated Voltage: up to 35KV
- Rated Power: up to 12MVA
- Insulation Class: F/H
- Standard: IEC/IEEE
Applications
Shore Power Connection Systems
Port Electrification Projects
Marine Power Supply Systems
Offshore Platforms
Product Features
Stable, reliable and high-performance power supply for renewable energy testing and advanced electrical systems.
Marine Standard Compliance
Designed to IEC 60092 standards and classification society requirements for shipboard systems.
High Moisture Resistance
Epoxy-cast windings provide non-hygroscopic insulation and stable operation in high humidity.
Marine Three-Proof Protection
Structural components resist salt spray, mold, and humidity for long-term marine reliability.
Vibration & Shock Resistant
Reinforced mechanical structure withstands vibration and shock loads during vessel operation.
High Insulation Reliability
Low partial discharge, high insulation level, overload capability, and strong mechanical strength.
Customized Marine Transformer
Flexible dimensions, installation methods, voltage levels, and electrical parameters for vessels.
Routine Testing
Every transformer completes the full routine test sequence in accordance with GB/T 1094.11 and IEC 60076-11 before shipment, and a test report is provided with each delivery.
- 01 — Insulation resistance test
- 02 — Voltage ratio & vector group
- 03 — Load loss test
- 04 — Partial discharge level
- 05 — Withstand voltage test
- 06 — Winding resistance test
- 07 — Induction withstand voltage test
- 08 — No-load loss test
Complete routine test reports are shipped with every unit. Witnessed testing at the factory and re-testing by third-party laboratories are supported.
Certificates& Compliance
Internationally certified & compliant ISO certified | CE, UL & ETL certified | RoHS & REACH compliant. Meeting international standards for quality, safety and environmental compliance.
CE Certificate
ETL Certificate
UL Certificate
ISO9001 Certificate
Lifecycle Service Support
From solution design to installation, operation, and maintenance, our technical and service teams provide full support throughout the product lifecycle.
- Customized dry type transformer solutions
- Technical consultation and product selection
- Electrical drawing and design optimization
- Fast quotation and engineering support
- OEM & project-based customization
- Installation guidance and commissioning support
- Technical documentation and operating manuals
- Online troubleshooting and technical assistance
- Spare parts and maintenance support
- Responsive after-sales service worldwide

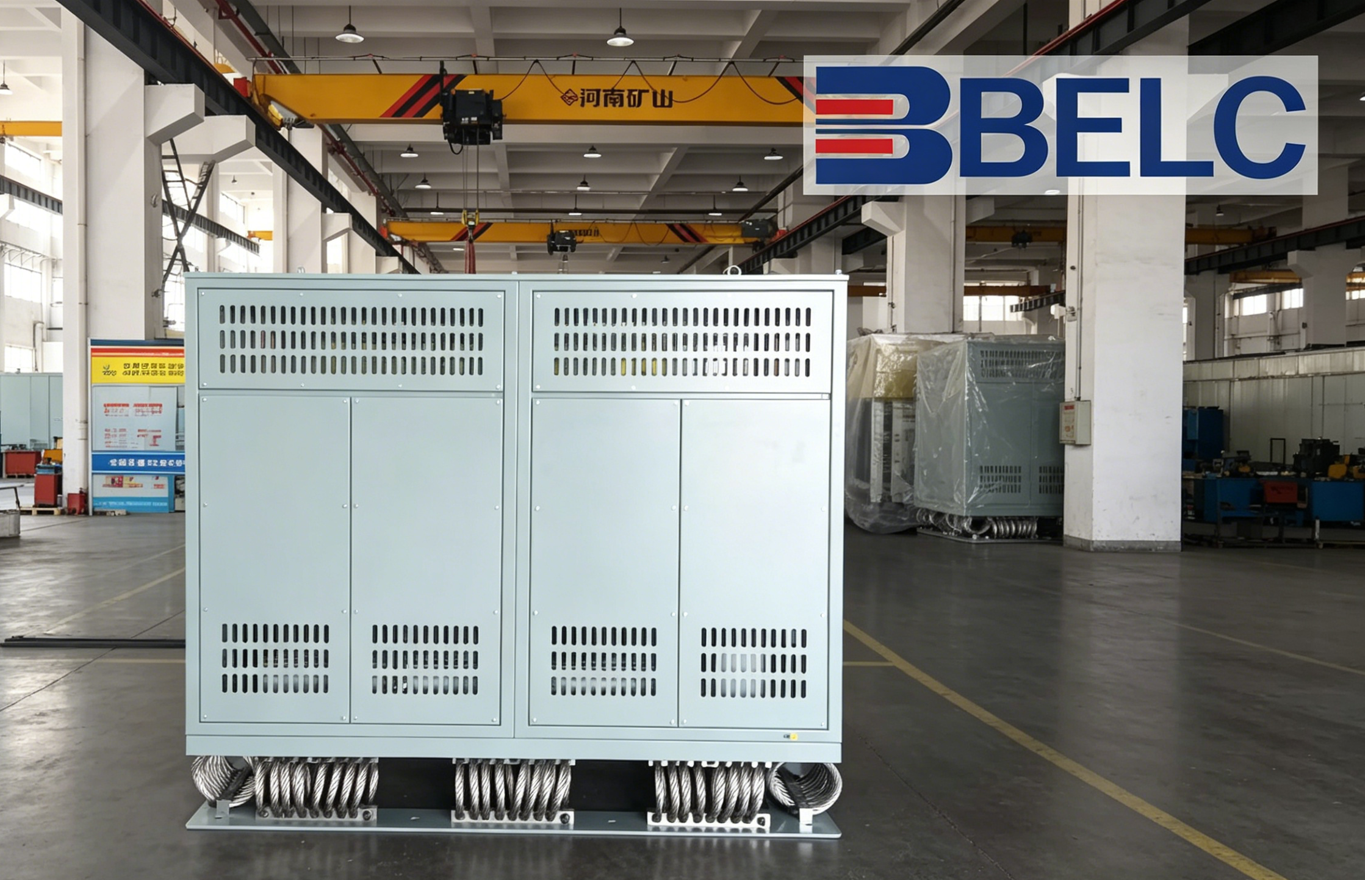

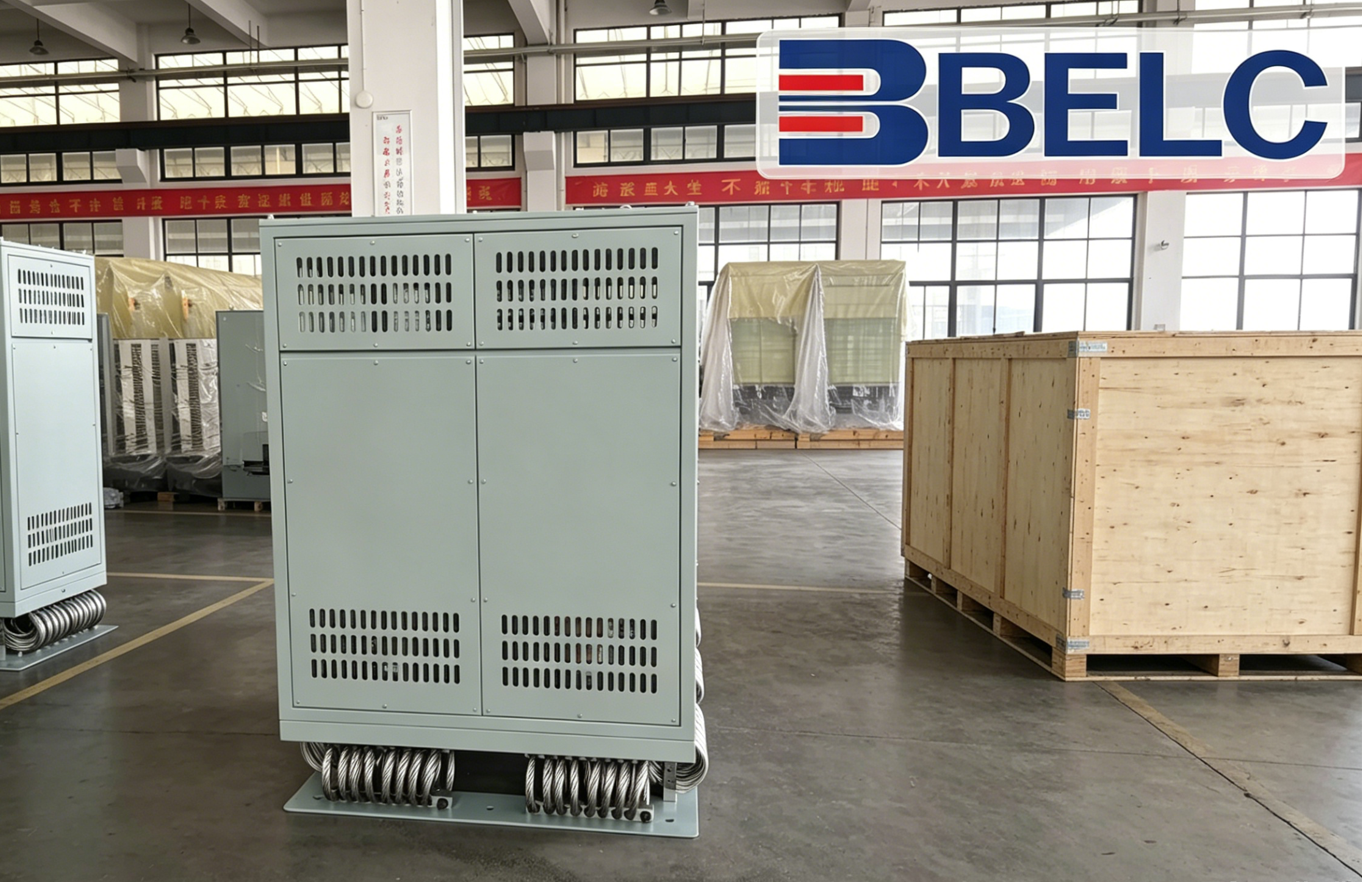

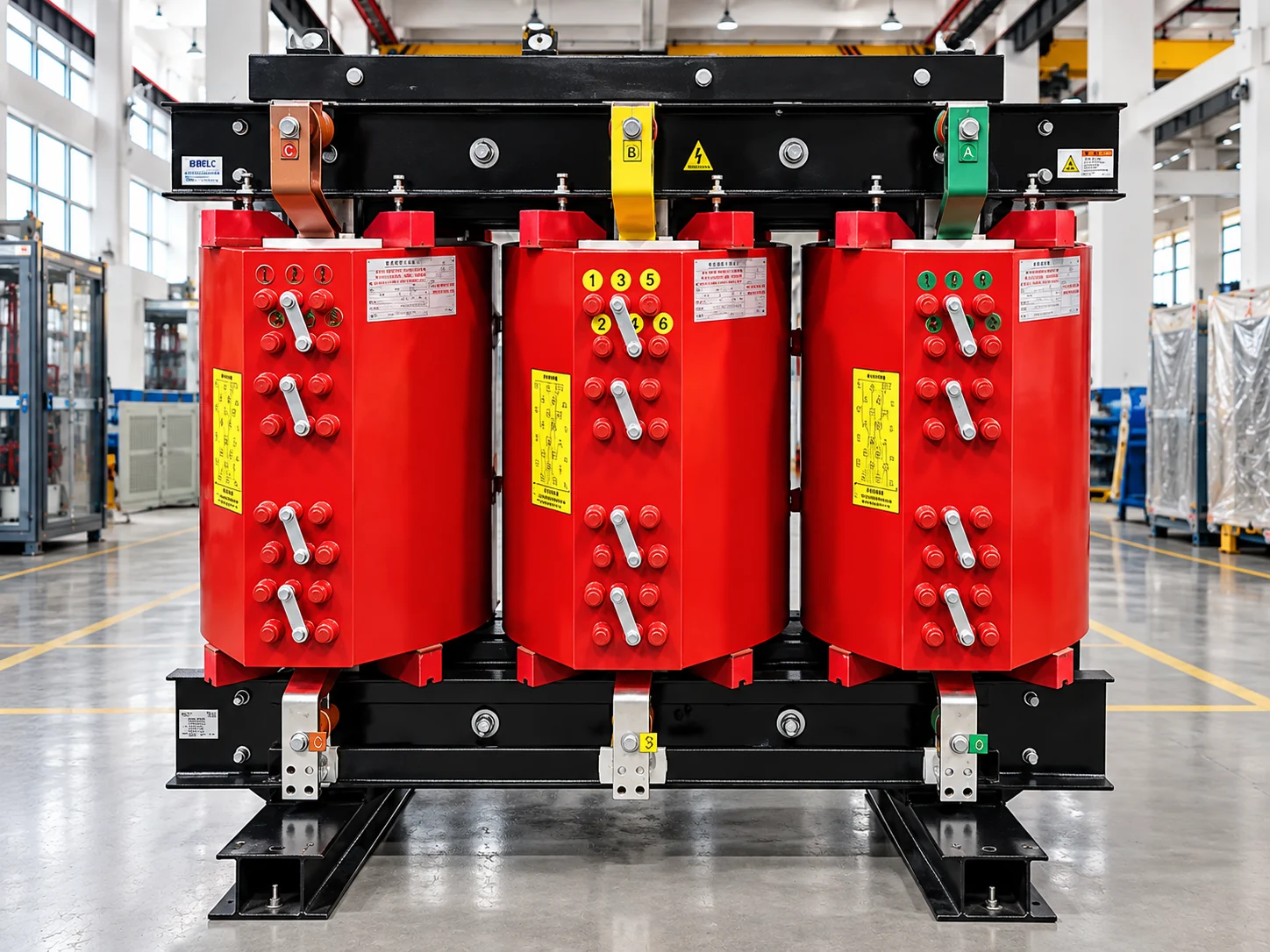

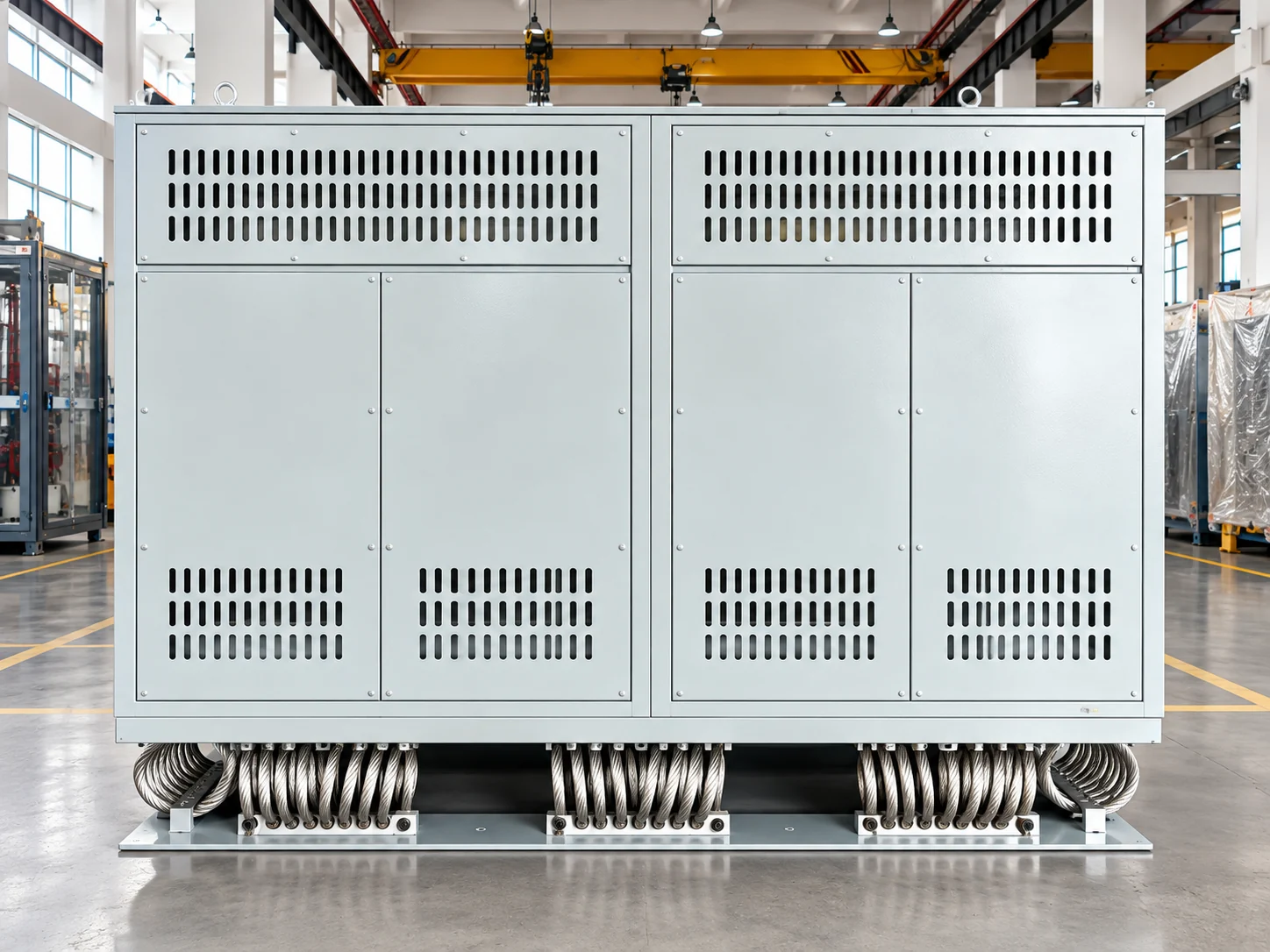

Workshop Gallery
Every transformer that leaves our factory comes from a standardized smart manufacturing line.
Need a Customized Dry-Type Transformer Solution?
Submit your technical requirements — our senior engineering team will provide a selection plan and an accurate quotation within 72 hours.
