China Isolation Transformer
The featured dry-type range gives industrial and shore-power buyers two clear product paths, with voltage, capacity, impedance, vector group and enclosure translated into a buildable quotation for supplier shortlisting. Capacity covers continuous apparent power plus transient and harmonic margin, while the electrical interface and environmental treatment match the installation. Separate windings provide galvanic isolation without replacing protective earth, grounding design or surge protection.
China Isolation Transformer
How Chinese Isolation Transformer Supply Fits Industrial Procurement
Supplier shortlisting depends on a product range that can translate site conditions into a buildable transformer specification.
The featured dry-type range covers industrial distribution and shore-power projects, with voltage, capacity, impedance, vector group and enclosure defined for the quotation.
- General industrial units cover three-phase distribution, commercial facilities and sensitive equipment.
- Shore-power units add coastal environmental treatment and interfaces for vessel and port systems.
- The selected range focuses on dry-type isolation transformers for industrial distribution and shore-power systems.
Which Isolation Transformer Configuration Matches The Load And Site?
Transformer selection changes with continuous load, starting current, waveform, source voltage, grounding and the installation environment.
Capacity should cover the maximum apparent power plus transient and harmonic margin, while voltage, phase, frequency, enclosure and environmental treatment must match the site.
- Industrial indoor duty uses the specified ventilation, enclosure and ambient-temperature limits.
- Shore-power duty adds humidity, salt-spray, corrosion, vibration and system-grounding requirements.
When Electrical Separation Solves Safety And Noise Problems
Separate primary and secondary windings transfer AC energy magnetically without an intended conductive path between the two circuits.
Electrical separation can establish a new reference and reduce selected common-mode coupling, but protective earth, overcurrent protection, grounding design and surge protection remain separate requirements.
- A 1:1 ratio is common, but isolated windings can also step voltage up or down.
- An optional electrostatic shield can reduce selected capacitive coupling; it does not remove every harmonic, sag or surge.
China Isolation Transformer Models For Industrial And Shore-Power Duty
The selected range focuses on dry-type isolation transformers for industrial distribution and shore-power systems. The general industrial model covers broad three-phase loads, while the shore-power model adds coastal environmental protection and marine power interfaces.
Dry-type Isolation Transformer
A three-phase cast-resin design for industrial distribution, commercial facilities and sensitive electrical equipment.
- Application / fitIndustrial plants, commercial buildings, data and communication facilities
- Rated range100 kVA–12 MVA; up to 35 kV
- Insulation systemCast-resin insulation; class F/H
- Electrical interfaceThree-phase, 50/60 Hz, project-configured voltage and vector group

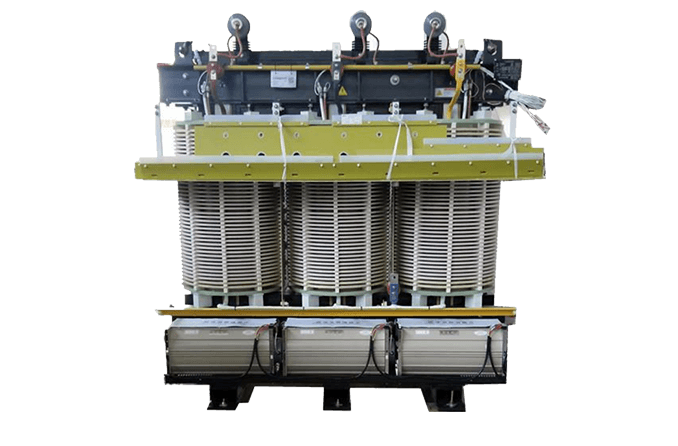

Dry-Type Isolation Transformer for Shore Power
A marine and port configuration for shore connections, coastal environments and offshore electrical systems.
- Application / fitShore power, port electrification, marine systems and offshore platforms
- Rated rangeUp to 12 MVA; up to 35 kV
- Insulation systemDry-type insulation, class F/H, with marine three-proof treatment
- Electrical interface50/60 Hz; configurable primary options including 6 kV and 6.6 kV
China Isolation Transformer Order And Delivery Terms
Each quotation separates the engineered trial, pilot order and repeat-supply route so quantity, production timing and documents remain explicit.
MOQ 1 unit. The trial is paid at the quoted engineering and material cost and is typically prepared in 10–15 working days after drawing approval.
Project pricing follows rating and options. Typical production is 20–30 working days after approved drawings, with routine testing before packing.
Batch pricing and production slots are negotiated. A typical replenishment window is 25–35 working days after technical and commercial confirmation.
Production begins after the approved technical drawing and commercial confirmation; configured units are not treated as off-the-shelf stock.
FOB, CFR and CIF shipment is available to major commercial ports. Freight mode depends on transformer dimensions, weight and destination access.
The delivery set includes a commercial invoice, packing list, approved drawing and routine test report.
China Isolation Transformer Custom Drawing Review
Upload a single-line diagram, load schedule or transformer drawing with primary and secondary voltage, phase, frequency, continuous kVA, load type, vector group, grounding plan, enclosure and quantity.
China Isolation Transformer Ordering Questions
These answers clarify technical limits that affect product suitability and system design.
Does an isolation transformer regulate its output voltage?
No. A standard isolation transformer follows its turns ratio, input variation and internal voltage drop unless a separate regulating function is designed into the unit.
Can protective earth be disconnected to obtain complete isolation?
No. The enclosure and exposed conductive parts still require protective-earthing arrangements that follow the applicable electrical code and project design.
Is an electrostatic shield included in every isolation transformer?
No. A shield is an optional design element used to divert selected capacitive common-mode currents, and its terminal must connect to the specified reference point.
How is an isolation transformer sized for rectifier or nonlinear loads?
Sizing uses maximum continuous apparent power and allows for harmonic current, crest factor, starting current, cyclic duty and ambient-temperature derating rather than relying on nameplate watts alone.
Does a general industrial unit cover medical or surge-isolation duty?
Not automatically. Medical locations and surge-isolation applications require their own protection concept, applicable standard and verified product parameters before a unit is specified.
Request A China Isolation Transformer Quotation
Include the source and load voltage, phase, frequency, continuous kVA, load type, installation environment and required quantity.
